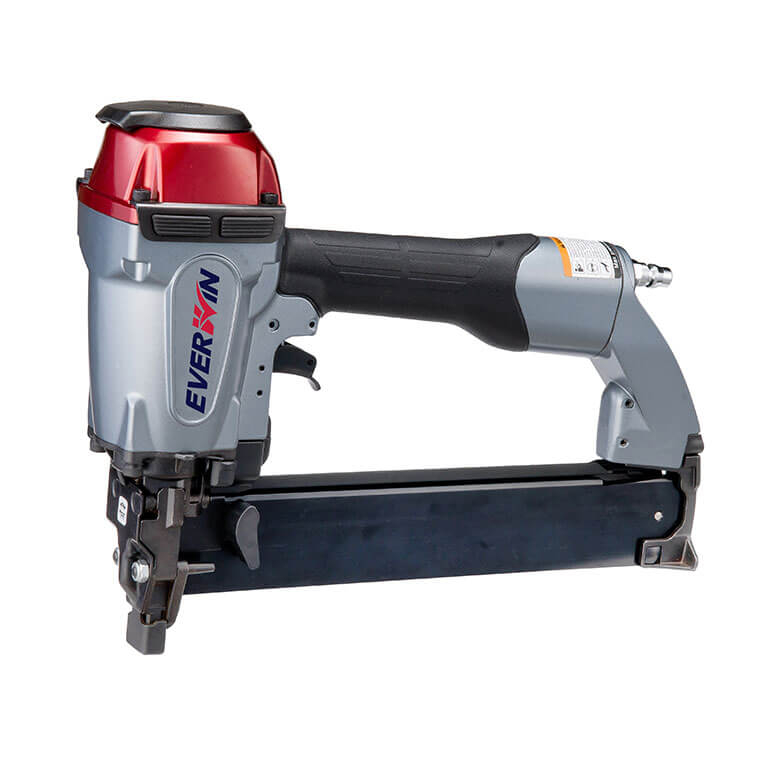

EVERWIN SN50GS-16 16GA 50MM GS-16 SERIES STAPLER

EVERWIN SN50GS-16 16GA MEDIUM CROWN STAPLER (25–50MM)

The SN50GS-16 is a heavy-duty industrial stapler built with a magnesium frame and investment-cast steel components for long life and extreme performance. Delivering 397 in-lbs of driving power and up to 20 cycles per second, it’s designed to handle the toughest production environments.

Applications

• Sheathing & subflooring

• Furniture framing

• Roof decking

• Crates & box assembly

• Pallets

• Fascia & soffits

• Ridge beam assembly

Features

• Jam-proof rear clearance design for minimal downtime

• Lightweight magnesium housing with steel end cap

• 397 in-lbs of driving energy

• Sequential or contact trigger options

• High-speed operation: 15–20 cycles/sec

• Automatic version available (SN50GS-16A)

Specifications

• Weight: 2.3 kg (5.1 lbs)

• Dimensions: 363 x 94 x 272 mm

• Operating pressure: 5–8 bar (70–120 psi)

• Driving power: 397 in-lbs

• Air consumption: 0.9 L/cycle @ 90 ps
