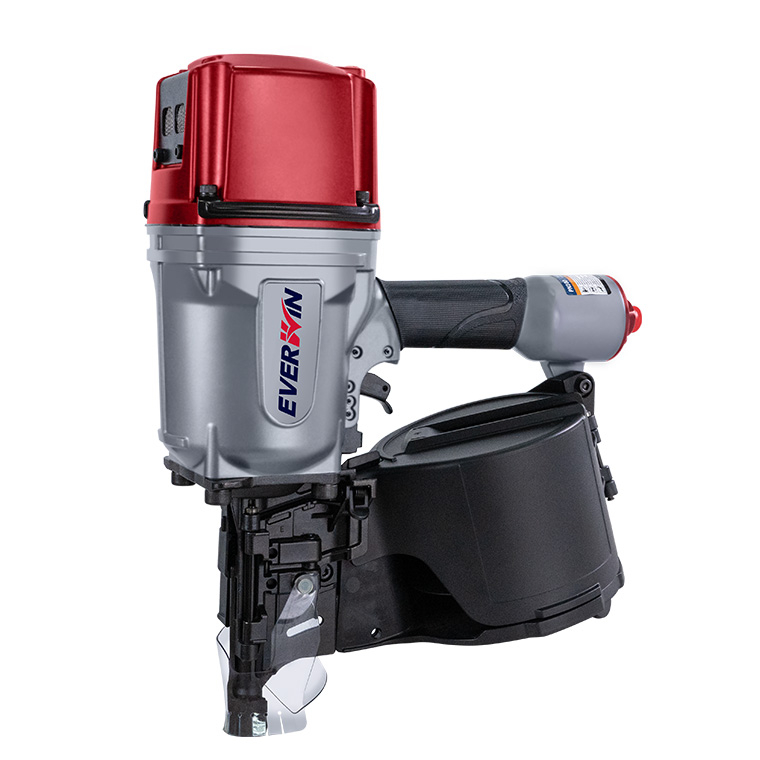

EVERWIN PN100 EPAL COIL NAILER

EVERWIN PN100EPAL INDUSTRIAL COIL NAILER 70–100MM

The PN100EPAL is a heavy-duty coil nailer engineered for EPAL pallet and industrial production. Driving nails up to 100 mm (4"), it delivers 1,470 in-lbs of power with the speed and durability needed for continuous operation. Reinforced with a metal nail tray, body protector, and optional side handle, it’s built to thrive in the toughest pallet, crate, and housing applications.

Applications

• Pallet assembly (EPAL certified)

• Crate assembly

• Drum construction

• Mattress box assembly

• Manufactured housing

• Bedding

Features

• 1,470 in-lbs driving energy for heavy-duty use

• High-speed operation with fast cycle times

• Rugged design with metal nail tray and body protector

• Optional shock-absorbent side handle for control

• Optional tool hanger and 3 mm nose shroud for convenience

Specifications

• Weight: 5.5 kg (12.1 lbs)

• Height: 417 mm (16.4")

• Length: 338 mm (13.3")

• Width: 156 mm (6.1")

• Operating Pressure: 5–8 bar (70–120 psi)

• Driving Power: 1,470 in-lbs @ 100 psi

• Air Consumption: 3.2 L/cycle (6.8 cfm @ 90 psi)
