EVERWIN PN100 INDUSTRIAL COIL NAILER 65 - 100MM

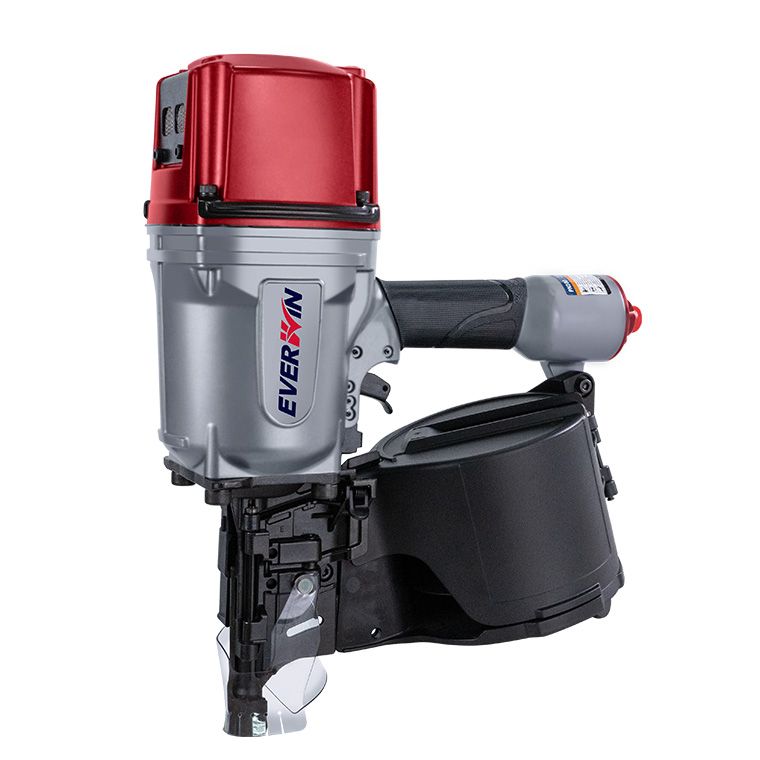

EVERWIN PN100 INDUSTRIAL COIL NAILER 65–100MM

The PN100 is a rugged coil nailer designed for high-speed, heavy-duty production. Driving nails up to 100 mm (4"), it delivers 1,470 in-lbs of power and is built to handle demanding pallet, crate, drum, and housing applications. Reinforced with a metal nail tray, body protector, and optional side handle, it’s engineered for durability and nonstop output.

Applications

• Pallet assembly

• Crate construction

• Drum manufacturing

• Mattress box assembly

• Manufactured housing

• Bedding production

Features

• 1,470 in-lbs driving energy for tough applications

• Fast cycle speed for high-volume output

• Robust design with reinforced frame

• Metal nail tray and body protector for durability

• Optional shock-absorbent side handle

• Optional safety/convenience accessories (tool hanger, nose shroud)

Specifications

• Weight: 5.5 kg (12.1 lbs)

• Height: 417 mm (16.4")

• Length: 338 mm (13.3")

• Width: 156 mm (6.1")

• Operating Pressure: 5–8 bar (70–120 psi)

• Driving Power: 1,470 in-lbs @ 100 psi

• Air Consumption: 3.2 L/cycle (6.8 cfm @ 90 psi)
