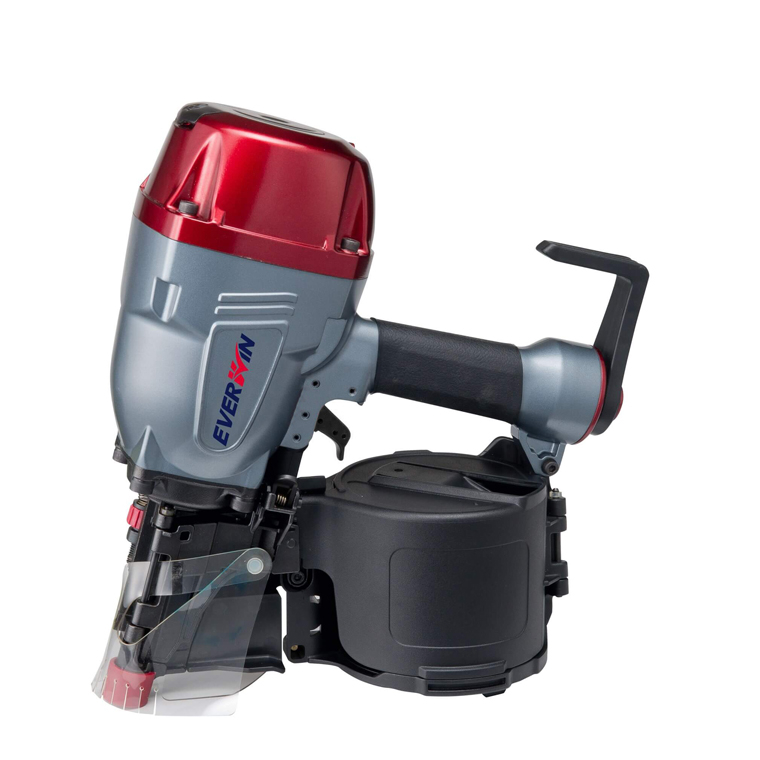

EVERWIN FCN90LB 90MM SMART COIL NAILER
EVERWIN FCN90 90mm Wire Coil Framing Nailer (Discontinued)
The FCN90 was one of the most compact 90mm (3-1/2") framing coil nailers in the world at just 13.2" tall, allowing easy access between studs. Built for durability and speed, it drove smooth, ring, and screw shank nails with reliability.
Applications:
Roofing
Decking
Cladding
Sub-flooring
Pallets and crates
Timber frame construction
Wall panel construction
Key Features:
Ultra-compact 13.2" design
Smart Trigger for sequential or contact fire
High-speed cycle operation
Serrated safety tip for secure toe-nailing
Metal exhaust cover and composite rotatable belt hook
No-mar pad to protect work surfaces
Specifications:
Weight: 3.5 kg (7.7 lbs)
Height: 335 mm (13.2")
Operating Pressure: 5–8 bar (70–120 psi)
Driving Power: 1000 in-lbs @ 100 psi
Fasteners: 15° wire collated nails, 50–90 mm, 150–300 capacity
| Fastener | 15 DEGREE WIRE COLLATED COIL NAILS |
|---|---|
| Type | 15 DEGREE WIRE COLLATED COIL NAILS |
| Brand | EVERWIN |
