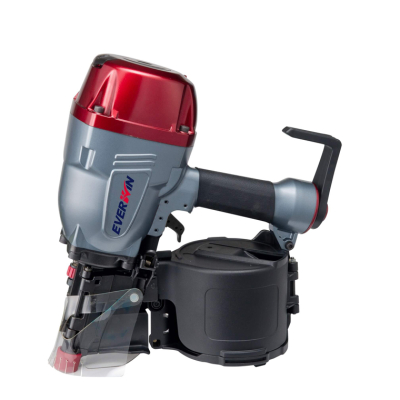

EVERWIN FCN90B 90MM COMPACT COIL NAILER
EVERWIN FCN90B 90mm Compact Coil Nailer
The world’s most compact 90mm (3-1/2") framing coil nailer at only 13.2" tall, designed for working in tight spaces. Drives 15° wire collated nails (50–90 mm) with smooth, ring, or screw shanks. Built for power, precision, and durability on demanding jobsites.
Applications:
Framing
Sheathing
Subfloors
General construction
Key Features:
Compact design for stud-to-stud access
Tool-free depth adjustment for precision
Serrated contact tip for secure toe-nailing
Durable nylon magazine with 150–300 nail capacity
Rotatable rafter hook and no-mar pad
Available in contact fire (CT) or sequential (ST) models
Specifications:
Weight: 3.5 kg (7.7 lbs)
Height: 335 mm (13.2")
Operating Pressure: 5–8 bar (70–120 psi)
Driving Power: 1000 in-lbs @ 100 psi
Fasteners: 15° wire collated nails, 50–90 mm length, 6.5–7.7 mm head dia., 2.5–3.8 mm shank dia.
| Fastener | 15 DEGREE WIRE COLLATED COIL NAILS |
|---|---|
| Type | 15 DEGREE WIRE COLLATED COIL NAILS |
| Brand | EVERWIN |
